olo_base_crc_append¶
Status Information¶
VHDL Source: olo_base_crc_append
Description¶

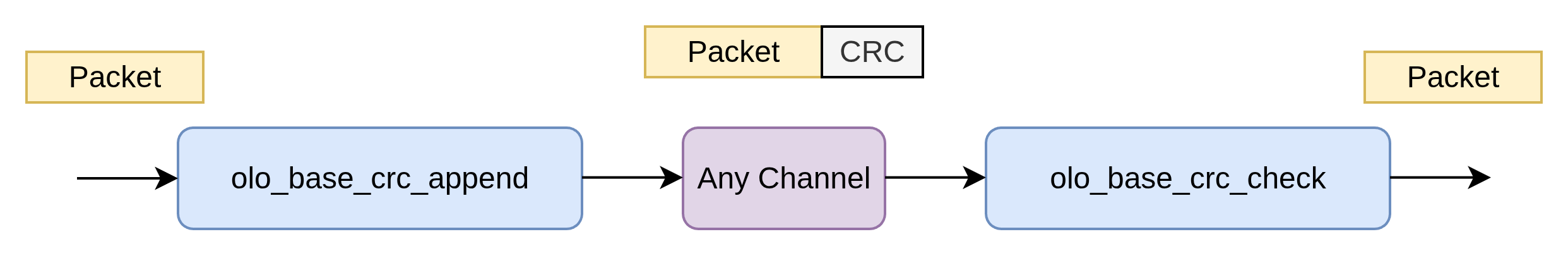

This component does calculate and append a CRC checksum to AXI4-Stream packets. Together with olo_base_crc_check it can be used to CRC protect any data stream.
The CRC to append to the packet must be smaller or equal to the width of the data stream (DataWidth_g). If the CRC is smaller, the CRC is placed in the LSBs of the data word and the remaining MSBs are filled with zeros.
CRC settings are identical to olo_base_crc, plese refer to the documentation of olo_base_crc for details.

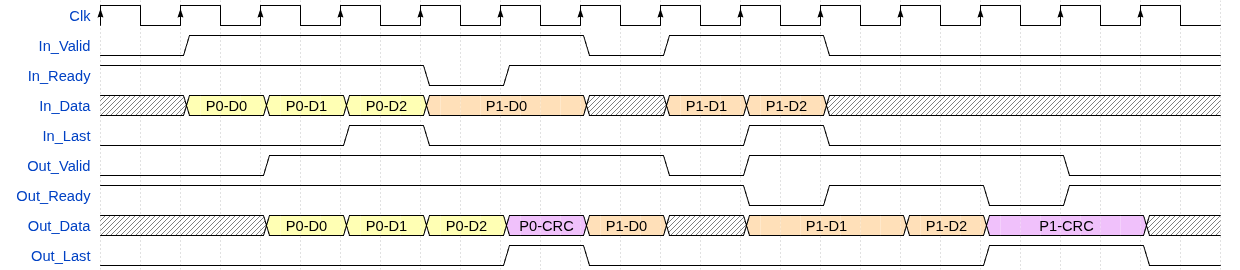

Below waveform shows an example use-case.
Note that the exact timing and latency might be different from the figure. The important point in the figure are:
- There are no bubble cycles in the output stream
- There is one stall cycle per packet in the input stream (when CRC is appended)
- Input and output support full AXI4-Stream handshaking (Ready/Valid)
Generics¶
| Name | Type | Default | Description |
|---|---|---|---|
| DataWidth_g | positive | - | Data width of the data stream |
| CrcPolynomial_g | std_logic_vector | - | See olo_base_crc |
| CrcInitialValue_g | std_logic_vector | all '0' | See olo_base_crc |
| CrcBitOrder_g | string | "MSB_FIRST" | See olo_base_crc |
| CrcByteOrder_g | string | "NONE" | See olo_base_crc |
| CrcBitflipOutput_g | boolean | false | See olo_base_crc |
| CrcXorOutput_g | std_logic_vector | all '0' | See olo_base_crc |
Note: For cases where no exact protocol specification must be followed (for user defined protocols) it is suggested to leave the following generics on their default value. These generics are only used to match exact protocol specifications.
- CrcXorOutput_g
- CrcBitflipOutput_g
- CrcByteOrder_g
- CrcBitOrder_g
- CrcInitialValue_g
Interfaces¶
Control¶
| Name | In/Out | Length | Default | Description |
|---|---|---|---|---|
| Clk | in | 1 | - | Clock |
| Rst | in | 1 | - | Reset input (high-active, synchronous to Clk) |
Input Data¶
| Name | In/Out | Length | Default | Description |
|---|---|---|---|---|
| In_Data | in | DataWidth_g | - | Input data |
| In_Valid | in | 1 | '1' | AXI4-Stream handshaking signal for In_Data |
| In_Ready | out | 1 | N/A | AXI4-Stream handshaking signal for In_Data |
| In_Last | in | 1 | - | AXI4-Stream packet end signaling for In_Data |
Output Data¶
| Name | In/Out | Length | Default | Description |
|---|---|---|---|---|
| Out_Data | out | DataWidth_g | N/A | Output data |
| Out_Valid | out | 1 | N/A | AXI4-Stream handshaking signal for Out_Data |
| Out_Ready | in | 1 | '1' | AXI4-Stream handshaking signal for Out_Data |
| Out_Last | out | 1 | N/A | AXI4-Stream packet end signaling for Out_Data |

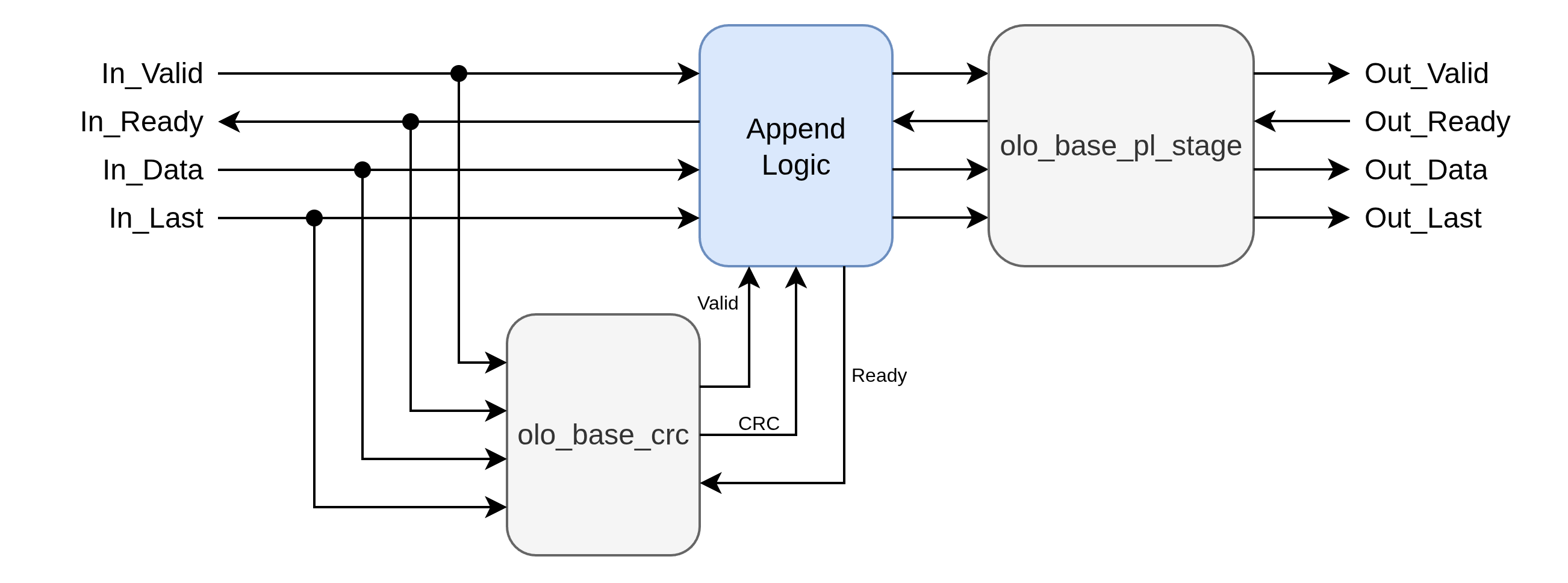

Architecture¶
The architecture is relatively trivial thanks to the already existing olo_base_crc component.
A pipeline stage olo_base_pl_stage is required at the output to avoid any direct combinatorial paths from Out_Ready to In_Ready.
