VHDL Source: olo_ft_private_scrubber

Internal building block. This entity is the private opportunistic-scrubber core instantiated by the scrubbing RAM wrappers olo_ft_ram_sp_scrub and olo_ft_ram_sdp_scrub. It is not intended for direct end-user instantiation and is documented here so the scrub wrappers can reference its behavior in one place. It carries no ECC logic of its own; it only schedules and arbitrates reads and writebacks against an already-ECC-protected RAM.

Description

The scrubber walks the RAM address space autonomously and rewrites a word whenever the wrapped RAM reports a correctable single-bit error (SEC) on it, refreshing the stored codeword before a second upset can turn a correctable error into an uncorrectable one. It is opportunistic: scrub reads fill idle read-port cycles, writebacks wait for a free write slot, and only a user write to the address currently being scrubbed aborts the operation in flight. The user always wins the port muxes, so the scrubber never stalls a user access; conversely, the scrubber keeps making progress under partial user traffic (for example a read every second cycle) and is only fully starved while the user occupies the required port on literally every cycle.

This core owns both the scrub FSM and the user/scrubber arbitration. To stay reusable across the single- and dual-port wrappers it presents a generic write-channel + read-channel interface: the user side (User_Wr_* / User_Rd_*) carries the wrapper's user requests, and the RAM side (Ram_Wr_* / Ram_Rd_*) carries the muxed requests to the wrapped RAM. The user always wins. A single-port wrapper ties both user channels to its one shared port and collapses the two RAM channels back onto it; a dual-port wrapper maps the channels 1:1 onto the RAM's write and read ports.

By default the scrubber is free-running: it advances as fast as user-idle cycles allow. An optional internal pacer (enabled when ScrubPeriod_g > 0.0) instead limits it to one full pass every ScrubPeriod_g seconds and raises Scrub_Overrun if a pass cannot finish within its period -- see Scrub Pacing.

For background on the SECDED scheme and the meaning of the ECC flags, see Open Logic Fault-Tolerance Principles.

Generics

Name	Type	Default	Description
Depth_g	positive	-	Number of addresses to scrub. Matches the wrapped RAM depth. Must be at least 2.
Width_g	positive	-	Data word-width (decoded data, not the codeword width).
TotalReadLatency_g	positive	-	End-to-end read latency of the wrapped ECC RAM, i.e. RamRdLatency_g + EccPipeline_g. The FSM waits this many cycles between issuing a read and acting on the decoded ECC flags, and the read-valid shift register is this long.
SinglePortRam_g	boolean	false	When true, the scrubber also drives the collapsed single-port address Ram_Addr for olo_ft_ram_sp_scrub. Leave false (default) for the dual-port wrapper, which maps Ram_Wr_Addr / Ram_Rd_Addr 1:1 onto the RAM and ignores Ram_Addr.
ScrubClkHz_g	real	-	Frequency of Clk in Hz, used only to size the optional pacer. Set it to the actual clock frequency; must be >= 1000.0 when the pacer is enabled (ScrubPeriod_g > 0.0), and is ignored when free-running.
ScrubPeriod_g	real	0.0	Pacer period in seconds: one full scrub pass is started every ScrubPeriod_g seconds (1 ms granularity). 0.0 (default) disables the pacer and leaves the scrubber free-running; any value > 0.0 enables it.

Interfaces

Clock and Reset

Name	In/Out	Length	Default	Description
Clk	in	1	-	Clock
Rst	in	1	-	Reset (high-active, synchronous). Returns the FSM to Idle_s, clears the address counter and the read-valid pipeline.

Scrubber Enable

Name	In/Out	Length	Default	Description
Scrub_Enable	in	1	'1'	External enable. '0' suspends scrubbing: no new operation is issued, an operation in flight is aborted (without advancing, so the address is preserved and retried on resume), and the pacer's overrun watchdog is disarmed. The user channels are not disturbed. See Suspension.

User Write Channel (request)

Name	In/Out	Length	Default	Description
User_Wr_Addr	in	ceil(log2(Depth_g))	-	User write address.
User_Wr_Ena	in	1	-	User write enable. While '1' the user owns the write channel; a pending scrub writeback waits for a free write slot. A write to the address currently being scrubbed additionally aborts the scrub operation in flight.
User_Wr_Data	in	Width_g	-	User write data.

User Read Channel (request)

Name	In/Out	Length	Default	Description
User_Rd_Addr	in	ceil(log2(Depth_g))	-	User read address.
User_Rd_Ena	in	1	-	User read enable. While '1' the user owns the read channel and no scrub read is issued; a scrub read already in flight is not disturbed.

RAM Write Channel (muxed)

Name	In/Out	Length	Default	Description
Ram_Wr_Addr	out	ceil(log2(Depth_g))	N/A	Muxed write address (user when User_Wr_Ena = '1', else the scrub address).
Ram_Wr_Ena	out	1	N/A	Muxed write enable (User_Wr_Ena OR scrubber writeback).
Ram_Wr_Data	out	Width_g	N/A	Muxed write data (user data, or the registered decoded read data on a scrubber writeback).

RAM Read Channel (muxed)

Name	In/Out	Length	Default	Description
Ram_Rd_Addr	out	ceil(log2(Depth_g))	N/A	Muxed read address (user when User_Rd_Ena = '1', else the scrub address).
Ram_Rd_Ena	out	1	N/A	Muxed read enable (User_Rd_Ena OR scrubber read).

Collapsed Single-Port Address

Name	In/Out	Length	Default	Description
Ram_Addr	out	ceil(log2(Depth_g))	N/A	Single physical RAM address used by single-port wrappers: the write address when a write is active, else the read address. Driven only when SinglePortRam_g = true (tied to 0 otherwise).

Decoded RAM Read (response)

Name	In/Out	Length	Default	Description
Ram_Rd_Data	in	Width_g	-	Decoded (corrected) read data from the wrapped RAM. Also forwarded as the writeback payload.
Ram_Rd_EccSec	in	1	-	Single-error-corrected flag from the wrapped RAM's decoder.
Ram_Rd_EccDed	in	1	-	Double-error-detected flag from the wrapped RAM's decoder.
Ram_Rd_Valid	in	1	-	Read-valid from the wrapped RAM. Pulses for every read, user or scrubber.

User Read Valid (response)

Name	In/Out	Length	Default	Description
User_Rd_Valid	out	1	N/A	User-facing read valid: Ram_Rd_Valid with the scrubber-owned read cycles masked out. The wrapper forwards it straight to its user read-valid output.

Scrub Status

All status outputs are clean, directly countable one-cycle pulses; no external qualifier is needed.

Name	In/Out	Length	Default	Description
Scrub_EccSec	out	1	N/A	Pulses '1' for one cycle when a scrubber-issued read observed a single-bit error (SEC); gated internally so user reads never appear here. The scrubber writes that address back in the next free write slot, unless a user write to that address (or Scrub_Enable = '0') aborts the operation, in which case the address is retried.
Scrub_EccDed	out	1	N/A	Pulses '1' for one cycle when a scrubber-issued read observed a double-bit error (DED). The scrubber does not write the cell back (the corrected value is unreliable).
Scrub_PassDone	out	1	N/A	Pulses '1' for one cycle when the address counter rolls over from Depth_g-1 back to 0, marking a completed pass over the whole memory.
Scrub_Overrun	out	1	N/A	Pacer watchdog. Pulses '1' (and a simulation warning fires) when a new scrub period begins before the previous pass completed. Disarmed while Scrub_Enable = '0' (suspension is not an overrun) and tied '0' when the pacer is disabled (ScrubPeriod_g = 0.0).

Detailed Description

Arbitration

The request muxes are combinational and give the user priority on each channel independently:

Scrub_Collision = User_Wr_Ena AND (User_Wr_Addr = ScrubAddr)
SinglePortUsed  = (User_Wr_Ena OR User_Rd_Ena) AND SinglePortRam_g

Ram_Wr_Addr = User_Wr_Addr  when User_Wr_Ena='1'  else ScrubAddr
Ram_Wr_Ena  = User_Wr_Ena   OR  <scrub writeback>
Ram_Wr_Data = User_Wr_Data  when User_Wr_Ena='1'  else <registered decoded read data>
Ram_Rd_Addr = User_Rd_Addr  when User_Rd_Ena='1'  else ScrubAddr
Ram_Rd_Ena  = User_Rd_Ena   OR  <scrub read>

-- single-port collapse, only when SinglePortRam_g = true
Ram_Addr    = User_Wr_Addr  when User_Wr_Ena='1'  else  User_Rd_Addr when User_Rd_Ena='1'  else ScrubAddr

Only Scrub_Collision, a user write to the address currently being scrubbed, conflicts with a scrub operation (read-during-write hazard at issue, stale-writeback hazard in flight) and aborts it. All other user traffic merely occupies ports: a busy read port defers the next scrub read, a busy write port defers a pending writeback, and neither disturbs the read already in flight. For a single-port wrapper (SinglePortRam_g = true) any user access occupies the one physical port (SinglePortUsed), and the scrubber additionally collapses the write/read addresses onto Ram_Addr (the write address wins when a write is active); because the user always wins, ScrubAddr is selected only on cycles the user is idle.

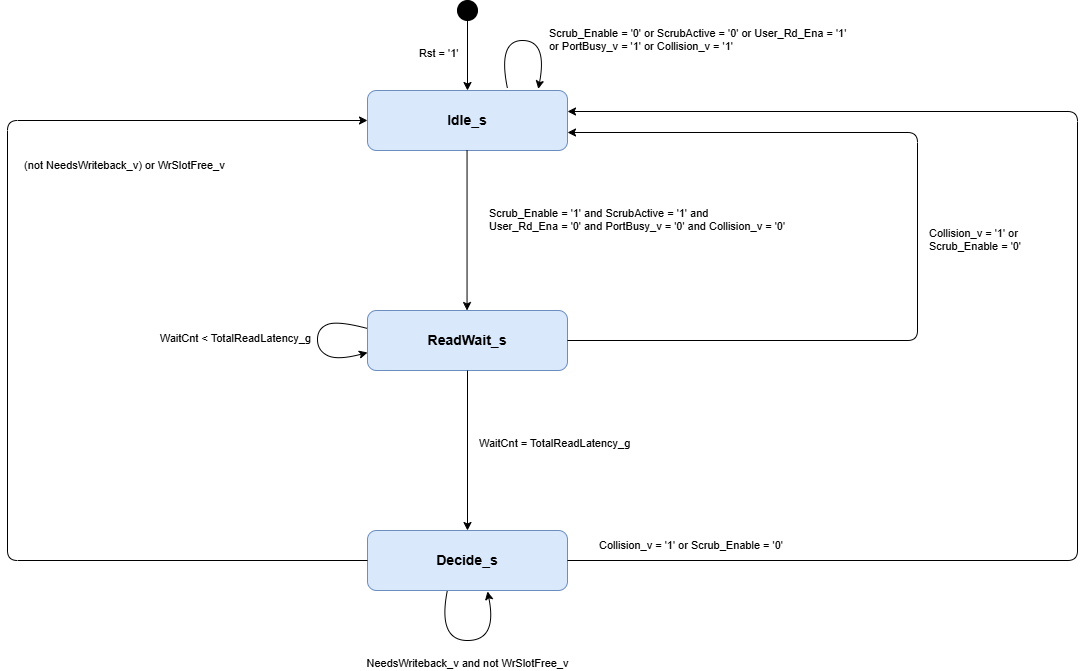

Scrubber FSM

The FSM walks one address per scrub operation through three states: Idle_s issues the read, ReadWait_s waits out the read latency, and Decide_s acts on the (registered) decoded result and advances the address.

Let L = TotalReadLatency_g and let T be the cycle the read is issued:

• Idle_s -- issue a scrub read at the current ScrubAddr as soon as the read port is free (User_Rd_Ena = '0' and, single-port, no user access at all), the pass is armed (Scrub_Enable = '1' and, paced, ScrubActive = '1') and the user is not writing the scrub address in this very cycle. Load WaitCnt = 1 and go to ReadWait_s.
• ReadWait_s -- count WaitCnt up until the decoded response is due (WaitCnt = L, i.e. cycle T+L), then go to Decide_s. User reads and user writes to other addresses do not disturb the read in flight; only a colliding user write (or Scrub_Enable = '0') aborts.
• Decide_s (from cycle T+L+1) -- act on the registered decoder flags captured at T+L. A clean or DED word needs no writeback: advance ScrubAddr immediately (pulsing Scrub_PassDone on rollover) and return to Idle_s. A SEC word is written back in the first cycle the write port is free; while the user occupies the write port the FSM waits here with the registered corrected word, still guarded by the collision abort.

The decoder response (flags and corrected data) is registered on the scrub read-return cycle (T+L, qualified by the internal read-return pulse), and Decide_s consumes the registered copy rather than the live decoder output. This splits the RAM-read -> decode -> re-encode -> RAM-write path across two clock cycles instead of one long combinational loop, which lets the scrubbing wrapper meet timing on par with the non-scrubbing ECC RAM. Qualifying the capture also keeps the held writeback payload stable while Decide_s waits for a write slot: user read responses flowing through the shared decode path meanwhile cannot corrupt it.

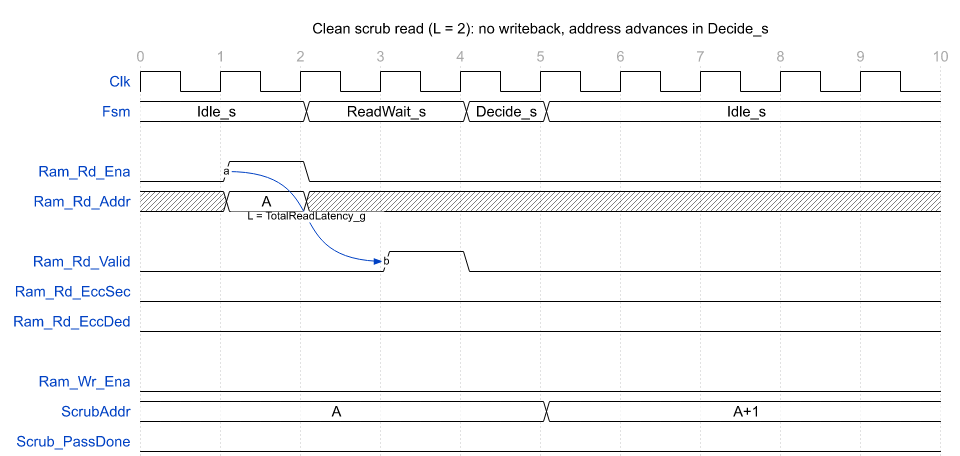

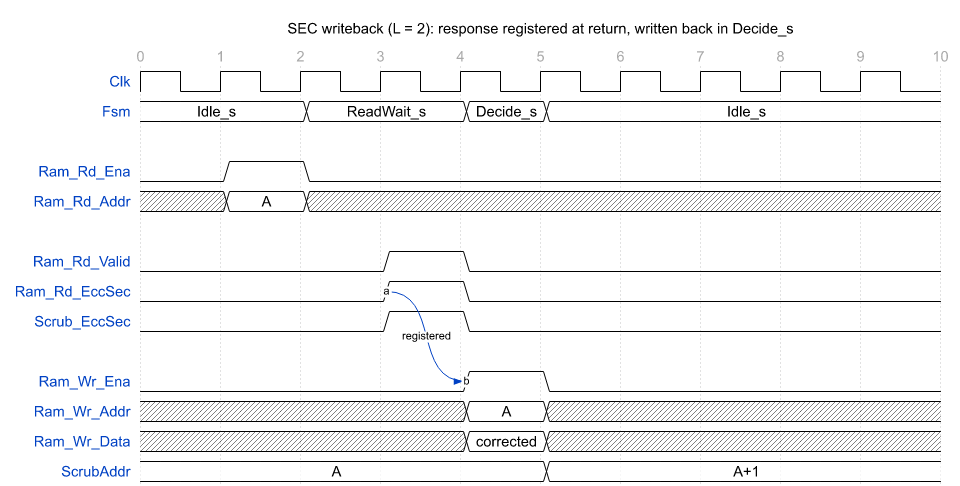

A clean scrub operation and a SEC writeback look like this (L = 2):

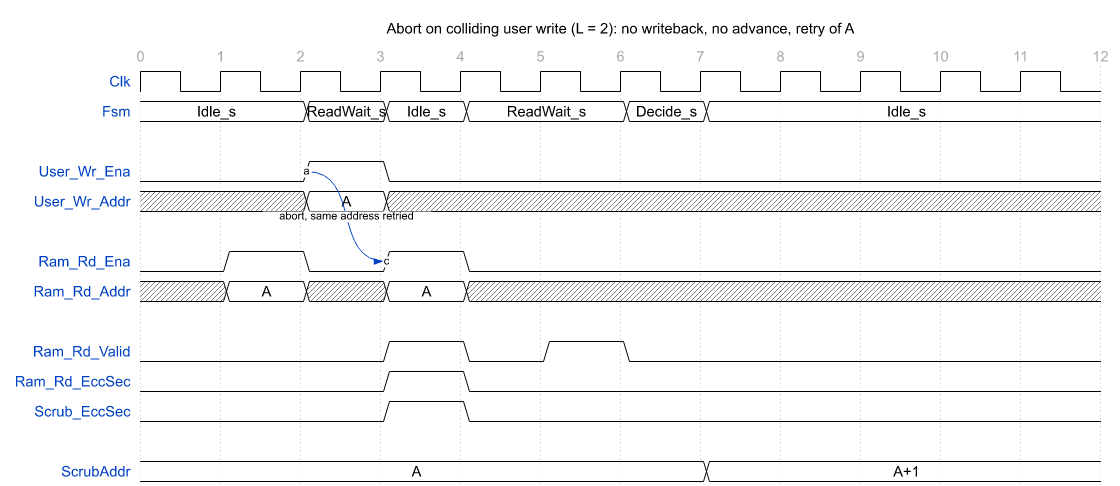

Abort. If the user writes the address currently being scrubbed (or Scrub_Enable goes '0') during ReadWait_s or Decide_s, the FSM drops back to Idle_s immediately without advancing ScrubAddr and without writing back, so the same address is retried on the next opportunity. User data is therefore always authoritative. The read already in flight still returns and is masked from the user; its gated status pulse may still fire (see below).

Read-Valid Masking and Status Gating

An internal length-L shift register (ValidPipe) tracks every scrub read-issue and pulses on the cycle the read returns from the decoder (T+L), decoupled from the FSM state, so it still pulses even when the FSM aborted in the meantime. It serves two purposes:

• Masking: the user-facing read valid is User_Rd_Valid = Ram_Rd_Valid AND NOT <scrub-return pulse>, so a scrubber-owned read never surfaces as a user read.
• Status gating: Scrub_EccSec / Scrub_EccDed are the decoder flags ANDed with the scrub-return pulse, so they are clean one-cycle pulses on scrubber reads only -- directly countable, with no consumer-side qualification.

Writeback Policy

Only SEC errors are written back. A clean read leaves the cell untouched (no unnecessary write traffic), and a DED read is reported via Scrub_EccDed but not rewritten, because the decoder's data output is unreliable for a double-bit error. A scrub pass therefore repairs all single-bit upsets and flags (but cannot fix) double-bit upsets.

Because clean and DED words advance without needing the write port, sustained user write traffic does not stop the scrub scan; it only defers the writeback of an encountered SEC word until the first free write slot. Sustained user read traffic on every cycle prevents new scrub reads and is the only way (besides Scrub_Enable) to stop the scan entirely.

Suspension (Scrub_Enable)

Driving Scrub_Enable = '0' suspends the scrubber: no new operation is issued, an operation in flight is aborted (address preserved, no writeback), and the pacer's overrun watchdog is disarmed so suspension is never reported as an overrun. On re-enable the scrubber resumes from the preserved address (a paced scrubber resumes with the next period strobe).

Suspension exists for system-level use cases, not for normal operation (the scrubber never interferes with the user):

• In-system EDAC self-test: plant a known error through the wrapper's error-injection port (ErrInj_BitFlip) and read it back to verify the SEC/DED reporting chain. With the scrubber suspended the planted error deterministically survives until the check; a free-running scrubber could repair it first.
• External pacing or mission phasing: systems that schedule scrubbing from software or around critical real-time windows can gate it externally instead of (or in addition to) the built-in pacer.

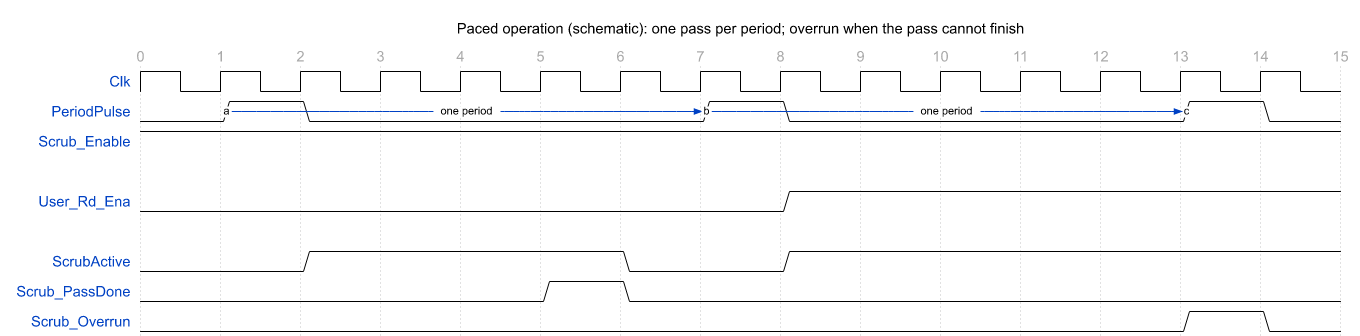

Scrub Pacing (optional)

By default (ScrubPeriod_g = 0.0) the scrubber is free-running: ScrubActive is tied '1' and the strobe primitives below are optimized away. Setting ScrubPeriod_g > 0.0 enables a pacer that limits scrubbing to one pass every ScrubPeriod_g seconds:

• A olo_base_strobe_gen produces a 1 kHz base tick from ScrubClkHz_g, which a olo_base_strobe_div divides by round(ScrubPeriod_g * 1000) to yield one period strobe every ScrubPeriod_g seconds (hence the 1 ms granularity). The cascade is required because a single olo_base_strobe_gen limits the clock-to-strobe ratio to 214'748'000, which at 100 MHz caps the period at about 2.1 s; realistic scrub periods for MTBF budgeting are minutes to hours, and the cascade reaches up to 2^31 - 1 ms.
• Each period strobe arms ScrubActive (only while Scrub_Enable = '1'); ScrubActive clears when the pass completes, so exactly one pass runs per period and the scrubber sits idle for the rest of it.
• If a period strobe arrives while the previous pass is still in progress, Scrub_Overrun pulses and a simulation warning fires. This is a watchdog for a ScrubPeriod_g set too short for the memory depth and the available idle bandwidth. Suspension via Scrub_Enable disarms the watchdog: a strobe arriving while suspended neither starts a pass nor reports an overrun.

When the pacer is enabled (ScrubPeriod_g > 0.0), ScrubClkHz_g must be set to the actual Clk frequency and be

= 1000.0, and ScrubPeriod_g must be >= 0.001 s; both are checked at elaboration.

Constraints

The scrubber requires single-clock operation: it observes the wrapped RAM's read on the same clock that drives the user port, so the scrubbing RAM wrappers are synchronous-only (no async read clock).

There is deliberately no olo_ft_ram_tdp_scrub: on a true-dual-port RAM both ports can be user-busy in any cycle (and may run on independent clocks), so there is no port the scrubber could own opportunistically.
