olo_ft_ram_sp¶
Status Information¶
VHDL Source: olo_ft_ram_sp
Description¶
This component implements an ECC-protected single-port RAM using SECDED (Single Error Correction, Double Error Detection) Hamming code. It wraps olo_base_ram_sp internally with a wider word to store parity bits alongside data.
The ECC is transparent to the user: data is automatically encoded on write and decoded/corrected on read. Error status flags indicate whether a single-bit error was corrected or a double-bit error was detected.
This is useful in radiation-hardened designs where single-event upsets (SEUs) can flip bits in memory cells.
For an opportunistic background memory scrubber, use olo_ft_ram_sp_scrub, a separate entity that wraps this one plus the scrubber FSM.
For background on the SECDED scheme, the codeword layout, error injection semantics and the constraints that apply across the ft area, see Open Logic Fault-Tolerance Principles.
Generics¶
| Name | Type | Default | Description |
|---|---|---|---|
| Depth_g | positive | - | Number of addresses the RAM has |
| Width_g | positive | - | Number of data bits stored per address (word-width). The internal RAM is wider to accommodate ECC parity bits. |
| RamRdLatency_g | positive | 1 | Read latency of the wrapped RAM, excluding ECC pipeline stages. Higher values can help close timing on the RAM read path. |
| RamStyle_g | string | "auto" | Controls the RAM implementation resource. Passed through to olo_base_ram_sp. |
| RamBehavior_g | string | "RBW" | Controls the RAM behavior. "RBW": Read-before-write "WBR": Write-before-read |
| EccPipeline_g | natural | 0 | Number of pipeline register stages within the ECC decoder (range 0..2). 0 = combinational decode (default). 1 = single register at the decoder output - breaks the path from the RAM read port to the user's logic. 2 = distributed pipeline: register between syndrome compute and correction, plus a register at the output - use this when both halves of the SECDED logic need their own clock cycle to close timing. See ECC Pipeline for details. Total read latency is RamRdLatency_g + EccPipeline_g cycles. |
Interfaces¶
Clock and Reset¶
| Name | In/Out | Length | Default | Description |
|---|---|---|---|---|
| Clk | in | 1 | - | Clock |
| Rst | in | 1 | '0' | Reset (high-active, synchronous to Clk). Clears the internal error-injection latch and the read-valid pipeline. The stored RAM contents are unaffected (block RAMs cannot be reset). |
FT RAM Port¶
| Name | In/Out | Length | Default | Description |
|---|---|---|---|---|
| Addr | in | ceil(log2(Depth_g)) | - | Address |
| WrEna | in | 1 | '1' | Write enable |
| WrData | in | Width_g | - | Write data |
| RdEna | in | 1 | '1' | Read enable. RdValid pulses '1' exactly RamRdLatency_g+EccPipeline_g cycles after each RdEna = '1' cycle. Leave at the default '1' for continuous reads. |
| RdData | out | Width_g | N/A | Read data (corrected if a single-bit error was detected) |
| RdValid | out | 1 | N/A | Read-data valid. Pulses '1' when RdData / RdEccSec / RdEccDed correspond to a read (= RdEna delayed by RamRdLatency_g+EccPipeline_g cycles). |
| RdEccSec | out | 1 | N/A | Single error corrected flag. '1' when a single-bit error was detected and corrected. |
| RdEccDed | out | 1 | N/A | Double error detected flag. '1' when an uncorrectable double-bit error was detected. Read data is unreliable in this case. |
Error Injection (optional)¶
These ports drive the internal olo_ft_ecc_encode instance. Leave them unconnected for normal operation; see Open Logic Fault-Tolerance Principles - Error Injection for the latched-strobe semantics shared across the ft area.
| Name | In/Out | Length | Default | Description |
|---|---|---|---|---|
| ErrInj_BitFlip | in | eccCodewordWidth(Width_g) | all 0 | Codeword-wide flip pattern. Each '1' bit XORs (flips) the corresponding bit of the stored codeword. Popcount 1 = SEC-correctable, popcount 2 = DED-detectable. |
| ErrInj_Valid | in | 1 | '0' | Strobe that latches ErrInj_BitFlip into the encoder's pending-injection register. The latched pattern is applied to the next write. If ErrInj_Valid = '1' and WrEna = '1' in the same cycle the pattern is applied directly without going through the latch. |
Detailed Description¶

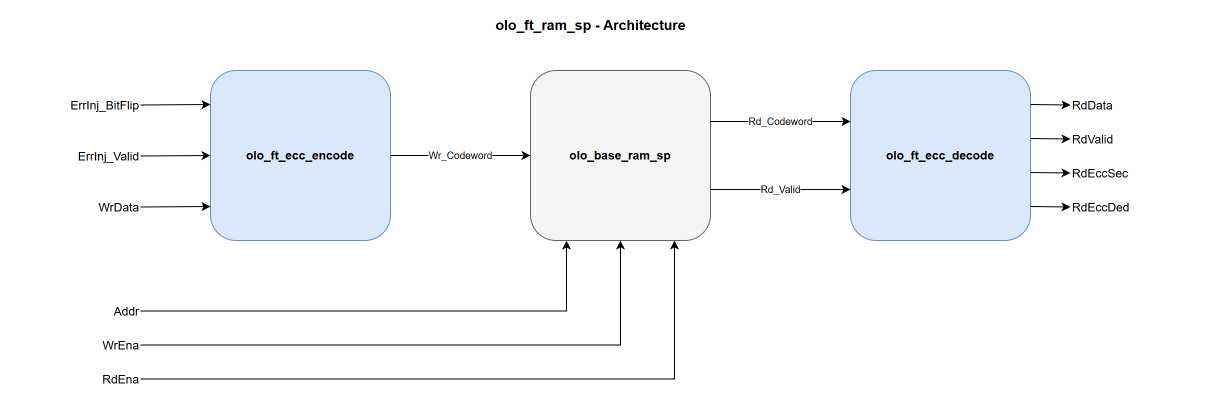

Architecture¶
The ECC encoding is combinational on the write path. The internal RAM (an instance of olo_base_ram_sp with a
codeword-wide word) provides the configurable read pipeline (RamRdLatency_g). The ECC decoding happens in the
internal olo_ft_ecc_decode instance and the error flags are time-aligned with the read
data regardless of EccPipeline_g.
ECC Pipeline¶
EccPipeline_g is forwarded one-to-one to the internal olo_ft_ecc_decode instance and
inserts register stages on the decode datapath. The range is 0..2:
EccPipeline_g |
Structure |
|---|---|
| 0 | Combinational decode after the RAM read port. RdData / RdEccSec / RdEccDed appear RamRdLatency_g cycles after Addr. |
| 1 | Combinational syndrome + correction + SEC/DED → register near the output. Breaks the path from the RAM read port to the user's logic. |
| 2 | Combinational syndrome → register → combinational correction + SEC/DED → register. Breaks both the syndrome path and the correction path - use this when both halves of the SECDED logic need their own clock cycle to close timing at high clock frequencies. |
Total read latency from address-presented to data-valid is RamRdLatency_g + EccPipeline_g clock cycles.
ECC Overhead, Error Injection and Status Flags¶
See the corresponding sections in Open Logic Fault-Tolerance Principles:
- ECC Overhead — internal storage width vs. data width
- Error Injection — semantics of ErrInj_BitFlip / ErrInj_Valid
- Error Status Flags — meaning of RdEccSec / RdEccDed
Constraints¶
See
Open Logic Fault-Tolerance Principles - Constraints That Apply Across the Area
for the no-byte-enables and no-initialization constraints. No additional olo_ft_ram_sp-specific constraints
apply.
