olo_base_wconv_n2xn¶
Status Information¶
VHDL Source: olo_base_wconv_n2xn
Description¶
This component implements a data width conversion from N-bits to a multiple of N-bits. The sample rate (Valid pulse rate) is reduced accordingly. The width conversion implements AXI-S handshaking signals to handle back-pressure.
This block can also be used for TDM to Parallel conversion (see Conventions)
The with conversion supports back-to-back conversions (In_Valid can stay high all the time). It also handles the last-flag correctly according to AXI specification. If In_Last is asserted, all data is flushed out and the word enabled (Out_WordEna) at the output are set only for words that contain data. Out_Last is asserted accordingly.
Note that insteady of byte-enables, a word enable (Out_WordEna) is implemented. It signals the validity of data on the granularity of In_Data words. This concept allows to correctly handle any data-widths, not only multiple of bytes.

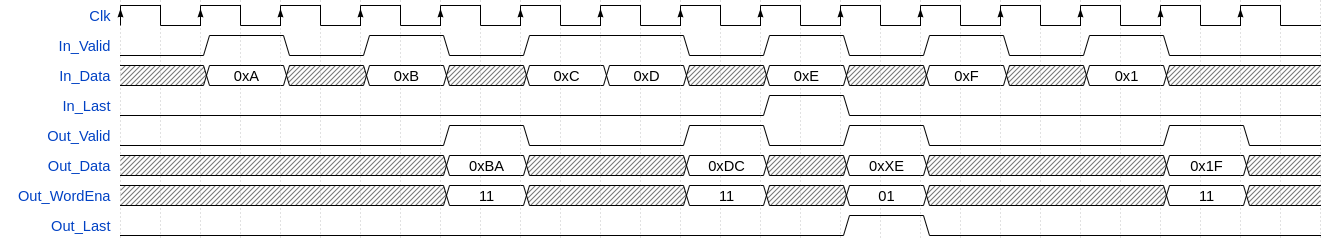

The entity does little-endian data alignment as shown in the figure below. The figure depicts operation of the block without backpressure (Out_Ready continuously high) and for a width-conversion from 4 to 8 bits.
This entity does only do a width conversion but not clock crossing. If a half-clock-double-width conversion is used, olo_base_cc_xn2n component can be used after the width conversion.
Generics¶
| Name | Type | Default | Description |
|---|---|---|---|
| InWidth_g | positive | - | Input width in bits. |
| OutWidth_g | positive | - | Output width in bits. Must be an integer multiple of InWidth_g |
Interfaces¶
Control¶
| Name | In/Out | Length | Default | Description |
|---|---|---|---|---|
| Clk | in | 1 | - | Clock |
| Rst | in | 1 | - | Reset input (high-active, synchronous to Clk) |
Input Data¶
| Name | In/Out | Length | Default | Description |
|---|---|---|---|---|
| In_Data | in | InWidth_g | - | Input data |
| In_Valid | in | 1 | '1' | AXI4-Stream handshaking signal for In_Data |
| In_Ready | out | 1 | N/A | AXI4-Stream handshaking signal for In_Data |
| In_Last | in | 1 | '0' | AXI4-Stream end of packet signaling for In_Data |
Output Data¶
| Name | In/Out | Length | Default | Description |
|---|---|---|---|---|
| Out_Data | out | OutWidth_g | N/A | Output data |
| Out_WordEna | out | OutWidth_g/InWidth_g | N/A | Output word-enable. Works like byte-enable but with one bit per input-word. All bits in this signal are set, exept for with conversion results flushed out by Out_Last='1'. In this case, the Out_WordEna bits indicate which Out_Data bits contain valid data (one Out_WordEna bit per InWidth_g bits in Out_Data. See figure in the Description section. |
| Out_Valid | out | 1 | N/A | AXI4-Stream handshaking signal for Out_Data |
| Out_Ready | in | 1 | '1' | AXI4-Stream handshaking signal for Out_Data |
| Out_Last | out | 1 | N/A | AXI4-Stream end of packet signaling for Out_Data |
Architecture¶
The architecture of the entity is simple, not detailed description is required.
