olo_intf_i2c_master¶

Status Information¶

Description¶

Overview¶

This entity implements an I2C master that is multi-master capable (i.e. supports arbitration). The olo_intf_i2c_master allows generating start, stop and repeated start conditions as well as transferring bytes in both directions. This entity also supports slaves that do clock-stretching.

Addressing is not handled separately. To send the byte containing the address and the R/W bit, the normal byte transfer is used. The user is responsible for filling the address into bits 7:1 and the R/W flag into bit 0 of the data.

The same applies for 10-bit addressing. The user is responsible to send the 10-bit addressing pattern using two byte transfers.

The bus state (busy or free) is tracked based on start- and stop-conditions. However, if no transactions are ongoing (i.e. SCL = '1' and SDA = '1') for a configurable timeout, the bus is always regarded as free. This helps handling the case where a master starts a transaction and then (e.g. due to reset) aborts the transaction without sending a stop-condition.

The user has three main interfaces:

The command interface (Cmd..._) allows to select the next bus action to execute. Commands are:
- START Send a start condition (only allowed if bus is idle)
- STOP Send a stop condition (only allowed if bus is not idle)
- REPSTART Send a repeated start condition (only allowed if the bus is not idle)
- SEND Send a data byte (only allowed if the bus is not idle). The data to send is provided along with the command.
- RECEIVE Receive a data byte (only allowed if the bus is not idle). The ACK to send is provided along with the command.
On the response interface (Resp..._), the user receives one response per command as soon as the command is completed. More information like the received ACK bit, whether the command was aborted due to a lost arbitration, the received data or whether the command sequence was illegal is sent along with the response.
On the status interface (Status..._) the user can see if the I2C bus is currently busy or free and if a command timed out (i.e. the user failed to provide the next command within time, and hence the bus was released).

The I2C SCL clock frequency can optionally be changed with every start condition transmitted.

For constants containing the command codes, a package olo_intf_i2c_master_pkg is defined in the same VHDL file.

Note: The I2C ports must be constrained manually. No solution was found for scoped timing constraints for inferred tristate buffers.

Generics¶

Name	Type	Default	Description
ClkFrequency_g	real	-	Frequency of the clock Clk in Hz. For correct operation, the clock frequency must be at least 16x higher than the I2C bus frequency.
I2cFrequency_g	real	100.0e3	Frequency of the I2cScl signal in Hz (without clock division)
ClkDivBits_g	natural	0	Number of bits used for the Cmd_ClkDiv port width. If this value is set to 0, the SCL clock divider is disabled.
BusBusyTimeout_g	real	1.0e-3	If I2cScl = '1' and I2cSda = '1' for this time in sec., the bus is regarded as free. If the user does not provide any command for this time, the olo_intf_i2c_master automatically generates a stop-condition to release the bus.
CmdTimeout_g	real	1.0e-3	When the olo_intf_i2c_master is ready for the next command but the user does not provide a new command, after this timeout (in sec.) the bus is releases and Status_CmdTo is pulsed to inform the user.
InternalTriState_g	boolean	true	True = Use internal tri-state buffer (I2cScl and I2cSda) are used. False = Use external tri-state buffer (I2cScl_x and I2cSda_x) are used.
DisableAsserts_g	boolean	false	If true, the olo_intf_i2c_master does not print any messages during simulations. This generic shall usually be false - it is only used to simulate command sequence errors (which normally produce errors due to assert statements).

Interfaces¶

Control¶

Name	In/Out	Length	Default	Description
Clk	in	1	-	Clock
Rst	in	1	-	Reset input (high-active, synchronous to Clk)

Command Interface¶

Name	In/Out	Length	Default	Description
Cmd_Ready	out	1	N/A	AXI-S handshaking signal for Cmd..._
Cmd_Valid	in	1	-	AXI-S handshaking signal for Cmd..._
Cmd_Command	in	3	-	Command to execute (olo_intf_i2c_master_pkg constant names in brackets) "000" => Send startcondition (I2cCmd_Start_c) "001" => Send stop condition (I2cCmd_Stop_c) "010" => Send rep. start condition" (I2cCmd_RepStart_c) "011" => Send data byte (I2cCmd_Send_c) "100" => Receive data byte (I2cCmd_Receive_c)
Cmd_Data	in	8	-	Data to send (only for I2cCmd_Send_c resp. Cmd_Command="011").
Cmd_Ack	in	1		Acknowledge to send (only for I2cCmd_Receive_c resp. Cmd_Command="100"). '1' => send ACK , '0' => send NACK. Note that polarity is inverted compared to the acknowledge bit on the I2C bus.
Cmd_ClkDiv	in	ClkDivBits_g	0	Runtime clock divider value for SCL clock. If ClkDivBits_g > 0, the SCL frequency I2cFrequency_g is divided by Cmd_ClkDiv . Cmd_ClkDiv is latched for every I2cCmd_Start_c command. Examples: 0 -> I2cFrequency_g 1 -> I2cFrequency_g 2 -> I2cFrequency_g / 2 10 -> I2cFrequency_g / 10

Response Interface¶

Name	In/Out	Length	Default	Description
Resp_Valid	out	1	N/A	AXI-S handshaking signal for Resp... The response interface does not support backpressure. Hence no _Ready signal is provided.
Resp_Command	out	3	N/A	Type of the command that completed. See Cmd_Command for details.
Resp_Data	out	8	N/A	Received data Only utilized for I2cCmd_Receive_c resp. CmdType="100"
Resp_Ack	out	1	N/A	1 => ACK received, 0 => NACK received Note that polarity is inverted compared to the acknowledge bit on the I2C bus. Only utilized for I2cCmd_Send_c resp. CmdType="011"
Resp_ArbLost	out	1	N/A	'1' indicates that the command failed because arbitration was lost.
Resp_SeqErr	out	1	N/A	The command failed because of wrong command sequence (e.g. attempt to do a I2cCmd_Start_c in the middle of an ongoing transfer).

Status Interface¶

Name	In/Out	Length	Default	Description
Status_BusBusy	out	1	N/A	'1' indicates that the I2C bus is busy (used by this master or another master)
Status_CmdTo	out	1	N/A	Pulsed high if the bus is released due to a timeout.

I2C Interface¶

Name	In/Out	Length	Default	Description
I2c_Scl	bidir	1	-	Used only if InternalTriState_g = true SCL signal
I2c_Sda	bidir	1	-	Used only if InternalTriState_g = true SDA signal
I2c_Scl_i	in	1	'0'	Used only if InternalTriState_g = false SCL input signal
I2c_Scl_o	out	1	N/A	Used only if InternalTriState_g = false SCL output signal
I2c_Scl_t	out	1	N/A	Used only if InternalTriState_g = false SCL Tri-State signal ('1' = tristated, '0' drive)
I2c_Sda_i	in	1	'0'	Used only if InternalTriState_g = false SDA input signal
I2c_Sda_o	out	1	N/A	Used only if InternalTriState_g = false SDA output signal
I2c_Sda_t	out	1	N/A	Used only if InternalTriState_g = false SCL Tri-State signal ('1' = tristated, '0' drive)

Architecture¶

Typical Command Sequences¶

This section provides a few examples for command/response sequences for typical use cases.

Note that the response of the last command is always available before the next command must be asserted. So it is possible to apply commands based on responses received (e.g. not applying a new command if arbitration was lost).

Two Byte Read¶

I2cCmd_Start_c -- send start condition
I2cCmd_Send_c -- send address byte (slave responds with ACK)
I2cCmd_Receive_c -- receive data and send ACK
I2cCmd_Receive_c -- receive data and send NACK
I2cCmd_Stop_c -- send stop condition

Order	CmdType	CmdData	CmdAck	RspType	RspData	RspAck
1	I2cCmd_Start_c	N/A	N/A	I2cCmd_Start_c	N/A	N/A
2	I2cCmd_Send_c	Addr + R/W	N/A	I2cCmd_Send_c	N/A	1
3	I2cCmd_Receive_c	N/A	1	I2cCmd_Receive_c	Data	N/A
4	I2cCmd_Receive_c	N/A	0	I2cCmd_Receive_c	Data	N/A
5	I2cCmd_Stop_c	N/A	N/A	I2cCmd_Stop_c	N/A	N/A

Two Byte Write¶

I2cCmd_Start_c -- send start condition
I2cCmd_Send_c -- send address byte (slave responds with ACK)
I2cCmd_Send_c -- send data (slave responds with ACK)
I2cCmd_Send_c -- send data (slave responds with NACK)
I2cCmd_Stop_c -- send stop condition

Order	CmdType	CmdData	CmdAck	RspType	RspData	RspAck
1	I2cCmd_Start_c	N/A	N/A	I2cCmd_Start_c	N/A	N/A
2	I2cCmd_Send_c	Addr + R/W	N/A	I2cCmd_Send_c	N/A	1
3	I2cCmd_Send_c	Data	N/A	I2cCmd_Send_c	N/A	1
4	I2cCmd_Send_c	Data	N/A	I2cCmd_Send_c	N/A	0
5	I2cCmd_Stop_c	N/A	N/A	I2cCmd_Stop_c	N/A	N/A

One Byte Write followed by One Byte Read (with Repeated Start)¶

I2cCmd_Start_c -- send start condition
I2cCmd_Send_c -- send address byte (slave responds with ACK)
I2cCmd_Send_c -- send data (slave responds with ACK)
I2cCmd_RepStart_c -- Repeated start
I2cCmd_Receive_c -- receive data and send NACK
I2cCmd_Stop_c -- send stop condition

Order	CmdType	CmdData	CmdAck	RspType	RspData	RspAck
1	I2cCmd_Start_c	N/A	N/A	I2cCmd_Start_c	N/A	N/A
2	I2cCmd_Send_c	Addr + R/W	N/A	I2cCmd_Send_c	N/A	1
3	I2cCmd_Send_c	Data	N/A	I2cCmd_Send_c	N/A	1
4	I2cCmd_RepStart_c	N/A	N/A	I2cCmd_RepStart_c	N/A	N/A
4	I2cCmd_Receive_c	N/A	0	I2cCmd_Receive_c	Data	N/A
5	I2cCmd_Stop_c	N/A	N/A	I2cCmd_Stop_c	N/A	N/A

Arbitration Lost¶

I2cCmd_Start_c -- send start condition
I2cCmd_Send_c -- send address byte (slave responds with ACK)
I2cCmd_Send_c -- send data (arbitration is lost during this byte)
I2cCmd_RepStart_c -- Repeated start
- This command is ignored (RespSeq='1') because it is illegal when the bus is not owned

Order	CmdType	CmdData	CmdAck	RspType	RspData	RspAck	RspArbLost	RespSeq
1	I2cCmd_Start_c	N/A	N/A	I2cCmd_Start_c	N/A	N/A	0	0
2	I2cCmd_Send_c	Addr + R/W	N/A	I2cCmd_Send_c	N/A	1	0	0
3	I2cCmd_Send_c	Data	N/A	I2cCmd_Send_c	N/A	N/A	1	0
4	I2cCmd_RepStart_c.	N/A	N/A	I2cCmd_RepStart_c	N/A	N/A	0	1

Example Waveform¶

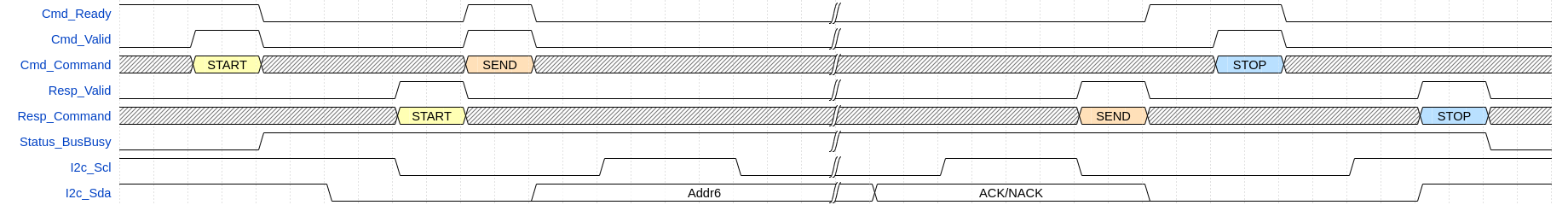

The waveform below shows the very simplest transaction possible: Transmitting an address only to probe if the slave is available. This simple transaction was chosen to keep the waveform as short as possible. The main focus is on the sequence of events, not on the I2C transaction.

address only transaction

Address only transaction
