olo_fix_sqrt

Back to Entity List

Status Information

VHDL Source: olo_fix_sqrt
Bit-true Model: olo_fix_sqrt

Description

This entity calculates the square root. It does so based on piecewise linear approximation (olo_fix_lin_approx_calc). It can process one sample per clock cycle but has a fixed latency. It is optimal for pipelined processing chains with high throughput.

The input is normalized (blue) into the range [0.25, 1), the square root is taken through a table based piecewise linear approximation (red) and the normalization is reverted on the result (green):

Because the square root halves the exponent, the normalization shift N must be even - which is why the approximation covers the two octaves [0.25, 1) and not just one.

Because the normalization maps the full input range to a relatively small range for approximation, a relatively small table delivers accurate results over the full range of any input format. The precision of the approximation is selected through PrecisionBits_g, see Precision.

The entity is fully pipelined, hence it accepts one input sample per clock cycle. As a result, back-pressure is not supported.

For details about the fixed-point number format used in Open Logic, refer to the fixed point principles.

Corner Cases

An input of zero delivers exactly zero.

Powers of four are not inverted exactly. The relative error stays within the bounds given under Precision for all inputs.

Latency

Latency is not guaranteed to be constant across different versions. It's therefore best to design user logic to be independent of the latency of this block (e.g. through olo_base_latency_comp).

In the current version the latency is 19 clock cycles, independently of the input format.

Generics

Name	Type	Default	Description
OutFmt_g	string	-	Output format
InFmt_g	string	-	Input format. Must be unsigned and at least 5 and at most 256 bits wide.
PrecisionBits_g	positive	18	Number of fractional bits of the square root approximation. Allowed values: 10, 14, 18, 20
MemStyle_g	string	"auto"	Resource control for the table (auto, block or distributed)
Round_g	string	"NonSymPos_s"	Rounding mode of the output stage
Saturate_g	string	"Sat_s"	Saturation mode of the output stage

Interfaces

Control

Name	In/Out	Length	Default	Description
Clk	in	1	-	Clock
Rst	in	1	-	Reset input (high-active, synchronous to Clk)

Input Data

Name	In/Out	Length	Default	Description
In_Valid	in	1	'1'	AXI4-Stream handshaking signal for In_Data
In_Data	in	width(InFmt_g)	-	Input data Format: InFmt_g

Output Data

Name	In/Out	Length	Default	Description
Out_Valid	out	1	N/A	AXI4-Stream handshaking signal for Out_Result
Out_Result	out	width(OutFmt_g)	N/A	Square root of In_Data Format: OutFmt_g

Details

Architecture

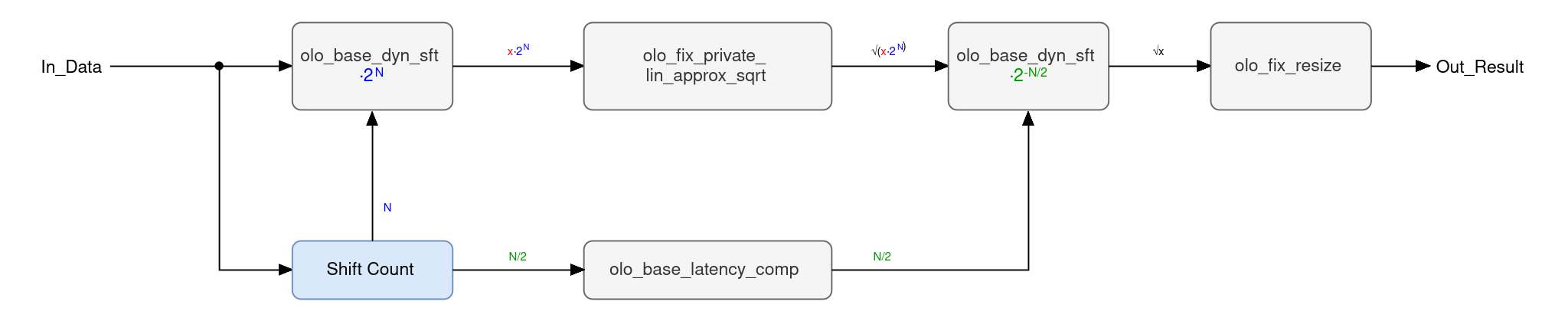

The figure below shows the architecture of the entity. The colors of the signal labels match the formula given in the Description.

The normalization shift N is derived from the number of leading zeros of the input. Because the compensation shift is half of the normalization shift, normalization shift must be even, which is automatically enforced by the logic itself. The input value is always normalized into the range [0.25, 1) after the shift.

Normalization and its reversal are both implemented by olo_base_dyn_sft, which spreads the barrel shifter over two pipeline stages to achieve good timing. The output shift is N/2, because the square root halves the exponent. It is delayed to the point where it is needed by olo_base_latency_comp.

The approximation is implemented by the internal entity olo_fix_private_lin_approx_sqrt. It contains the square root tables (one per supported PrecisionBits_g value) and instantiates olo_fix_lin_approx_calc for the piecewise linear interpolation. Below 0.25 the tables contain zeros, which makes the square root of a zero input exactly zero without any extra logic.

Reverting the normalization shifts the result right by N/2. The remaining constant factor (which depends only on the number of integer bits of the input format) is applied by reinterpreting the number format of the shifted result, hence it is pure wiring and does not cost any logic. Finally the result is rounded/saturated to OutFmt_g by olo_fix_resize.

Precision

PrecisionBits_g selects the number of fractional bits the square root approximation delivers. One table exists per supported value, hence only the values listed below are allowed - any other value leads to an error:

PrecisionBits_g	Table size
10	32 x 16 bit
14	128 x 23 bit
18	512 x 29 bit
20	1024 x 33 bit

Because the normalization makes the accuracy independent of the magnitude of the input, the error is defined relative to the result:

For very small outputs that are represented by less than PrecisionBits_g, the relative error can be larger, but the absolute error remains below 1 LSB.
